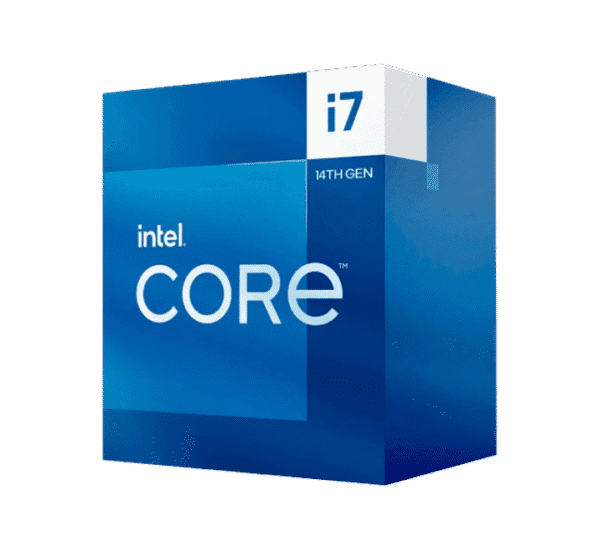

INTEL CORE I7 14700 PROCESSOR ( Cores 20, Threads 28)

The Intel Core i7-14700 is a high-performance desktop processor with 20 cores and 28 threads, offering a perfect balance of power and efficiency. Built on the Raptor Lake Refresh architecture, it’s ideal for gaming, streaming, and heavy multitasking.

Other Specification:

Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.4 GHz
Performance-core Max Turbo Frequency 5.3 GHz
Efficient-core Max Turbo Frequency 4.2 GHz
Performance-core Base Frequency2.1 GHz
Efficient-core Base Frequency1.5 GHz
Cache 33 MB Intel® Smart Cache
Total L2 Cache28 MB
Processor Base Power 65 W
Maximum Turbo Power 219 W
Supplemental Information
Marketing Status Launched
Launch Date Q1’24
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 GHz
Graphics Max Dynamic Frequency 1.6 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡4
Device ID0xA780
