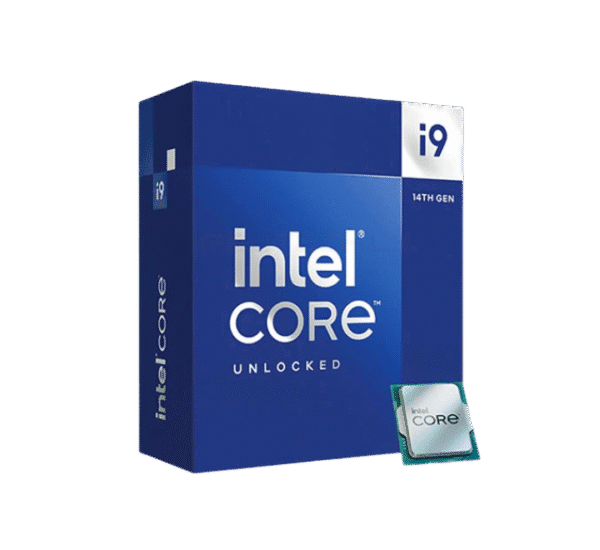

INTEL CORE I9 14900K PROCESSOR ( Cores 24 , Threads 32)

The Intel Core i9-14900K is the flagship processor of Intel’s 14th Gen Raptor Lake Refresh lineup. It boasts an incredible 24-core hybrid design, combining 8 high-performance P-cores and 16 energy-efficient E-cores, making it ideal for extreme gaming, content creation, and high-end productivity workloads.

With Intel’s Turbo Boost Max 3.0 and Thermal Velocity Boost, the i9-14900K reaches up to 6.0 GHz, delivering top-tier single-threaded performance. Its 32 threads and large cache sizes provide smooth multitasking, streaming, rendering, and encoding power. Additionally, it supports both DDR5 and DDR4 memory, giving users flexibility based on their budget and motherboard.

Whether you’re a gamer chasing maximum FPS, a video editor pushing 4K timelines, or a tech enthusiast looking to overclock — the Core i9-14900K stands out as one of the most powerful consumer desktop CPUs available.

OTHER SPECIFICATION:

Intel® Thermal Velocity Boost Frequency
6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡
5.8 GHz
Performance-core Max Turbo Frequency
5.6 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.2 GHz
Efficient-core Base Frequency
2.4 GHz
Cache
36 MB Intel® Smart Cache
Total L2 Cache
32 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q4’23
Embedded Options Available
No
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported ‡
Yes
GPU Specifications
Processor Graphics ‡
Intel® UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.65 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)‡
4096 x 2160 @ 60Hz
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
Intel® Speed Shift Technology
Yes
Intel® Adaptive Boost Technology
Yes
Intel® Thermal Velocity Boost
Yes
Intel® Turbo Boost Max Technology 3.0 ‡
Yes
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel Speed Step® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD) Yes
